NT-CTE Concentric Tubular Seawater Electrochlorination Sodium Hypochlorite Generator

Device overview:
NT-CTE concentric tubular seawater electrochlorination sodium hypochlorite generator is a high-tech equipment independently developed by Shanghai SCIYEE Water Treatment Technology Co., Ltd. and using SCIYEE's proprietary technology. It can serve the recycling water sterilization and disinfection of large-scale oil, electricity, LNG and other systems along the coast. The equipment adopts Seykey's proprietary technology electrodes to achieve superior seawater electrochlorination efficiency and energy saving effect. It has been running many projects at home and abroad for many years, and the safety and superiority of SCITEC system have been confirmed by more and more customers.

Stand-alone output:

1kg/h-500kg/h

Equipment features of odium hypochlorite generator:

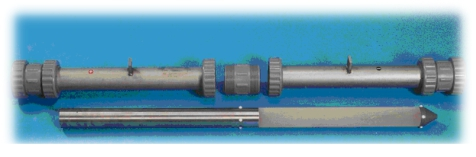

● Standardized design of electrode set: The standard design of each electrode set can be seamlessly replaced between electrode accessories, and the output of 500kg/h unipolar machine can be achieved through arrangement and combination;
● Long pickling cycle: pickling cycle 6-12 months;
● High pressure of electrolytic cell: the maximum operating pressure of the electrolytic cell can reach 1.0MPa;
● Easy maintenance and replacement: self-maintenance design, light and compact, small maintenance workload, no heavy machinery is required for maintenance, and 2 people can achieve single electrode disassembly and maintenance.

Equipment composition of odium hypochlorite generator:
The equipment is composed of seawater lifting module, sodium hypochlorite generation module, sodium hypochlorite storage module, sodium hypochlorite dosing module and control module.
