Acid-Free Sodium Hypochlorite Generator

Category:

Sodium Hypochlorite Generator from Brine


INQUIRY

Description



Product Introduction:

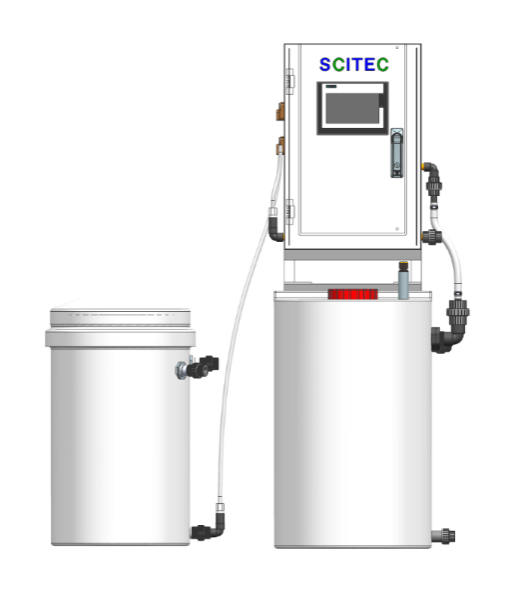

SCIYEE’s acid-free sodium hypochlorite generator is a self-developed, maintenance-free, fully automatic product by Shanghai SCIYEE. It uses a self-cleaning, durable electrolytic cell as the core, combined with fully automatic operation, efficient hydrogen discharge technology, and self-cleaning electrodes, to ultimately produce 0.5%-0.7% sodium hypochlorite solution.
The SCITEC acid-free sodium hypochlorite generator uses water, salt, and direct current to generate NaClO. Both the anode and cathode (electrodes) are coated with SCIYEE’s high-performance special coating, enabling the equipment to be acid-free. This coating technology not only increases the current efficiency for generating NaClO but also reduces power and salt consumption.





Process Flow:





Equipment Advantages:





● Continuously produces sodium hypochlorite safely and reliably on-site.
● Raw materials: Water, salt, and electricity.
● Can use refined or coarse salt.
● No need for regular acid cleaning
● No water softener required.
● No harmful Cl₂ gas generation.



Equipment Parameters:



Equipment Model

SCITEC-MX-50

Effective chlorine output

50g/h

Effective chlorine concentration

5-7g/L

Power supply (AC)

220V,50Hz

Rectifier output (DC)

4.5V,80A

Equipment footprint

1.0x0.5x1.5m
