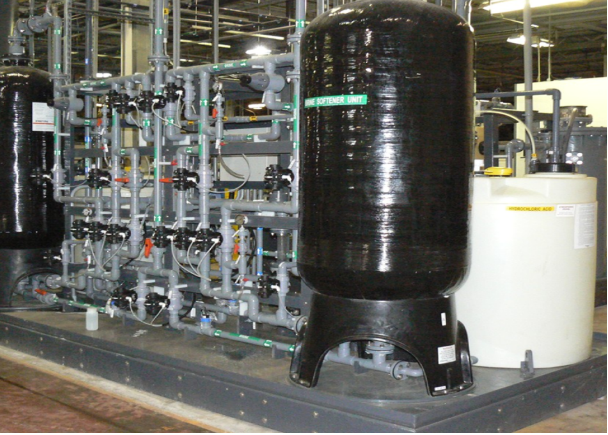

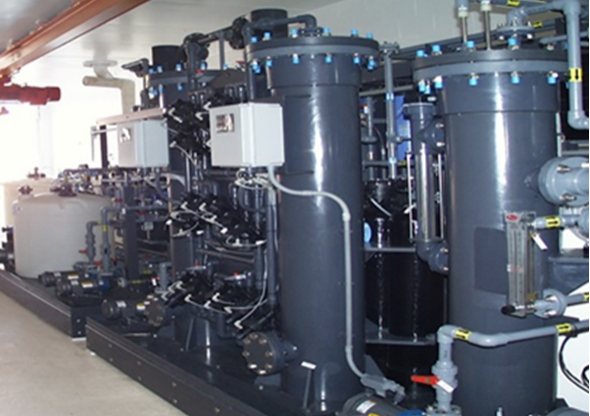

High-Concentration Sodium Hypochlorite Generator

Introduction and Application Scope of High-Concentration Sodium Hypochlorite Generator:

Sciyee’s high-concentration sodium hypochlorite generator is a small-to-medium electrochemical system designed for on-site remote applications. It uses food-grade salt to safely, economically, and efficiently produce high-purity, commercially viable sodium hypochlorite solutions. These systems can be configured to produce sodium hypochlorite solutions with concentrations ranging from 5% to 17%. This product eliminates safety issues related to the storage and use of pressurized chlorine, as well as the high costs, supply, and feasibility challenges associated with bulk chemical suppliers.

Application Fields:

Product Advantages:
● Eliminates chlorine risks: Prevents hidden dangers of toxic gas leaks.
● By-produces high-value lye: Generates high-purity membrane-grade sodium hydroxide by-products.
● Wide product concentration range: 5%-17%.
● Efficient raw material utilization: Uses food-grade salt for maximum operational efficiency.
● Smart and convenient control: Equipped with an intuitive touch-screen PLC control system.
● Compliance and safety assurance: Adopts NSF-certified materials, meeting safety and hygiene standards.
● Safe hydrogen treatment: Effectively dilutes hydrogen to a safe concentration (<1%).

Introduction to Main Equipment of High-Concentration Sodium Hypochlorite Generator:

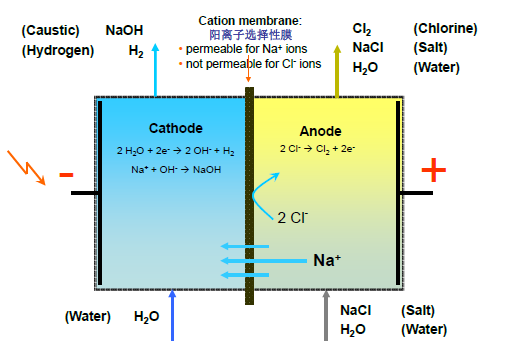

Electrolytic Cell System: Adopts a partitioned electrolytic cell design with selective ion membrane technology and coated titanium electrodes. The membrane electrolytic cell avoids conventional anode scaling and eliminates the need for electrode pickling. It reduces the need for bulk transportation and over-storage, significantly saving costs compared to market products.

Power Supply System: Employs thyristor DC power supply and adjustable current source, maintaining stable DC output within 1%.

Automation System: A programmable logic controller (PLC) can interface with most existing systems for remote control and monitoring. It is easy to operate, requires minimal manpower, and can be adjusted via the touch-screen interface. Multiple safety interlock devices are installed on the system to provide alarms and ensure safety.

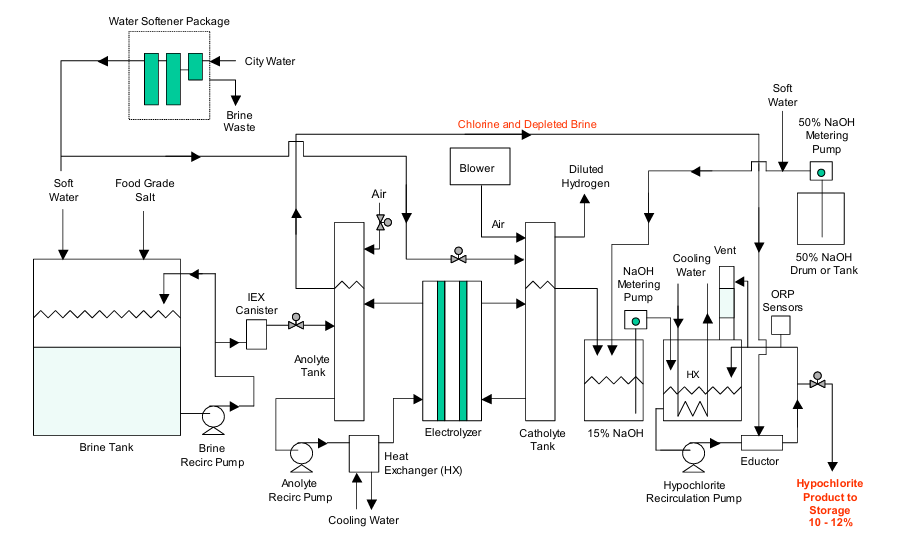

Process Flow of High-Concentration Sodium Hypochlorite Generator:

SCITEC High-Concentration Sodium Hypochlorite Generator Parameters:

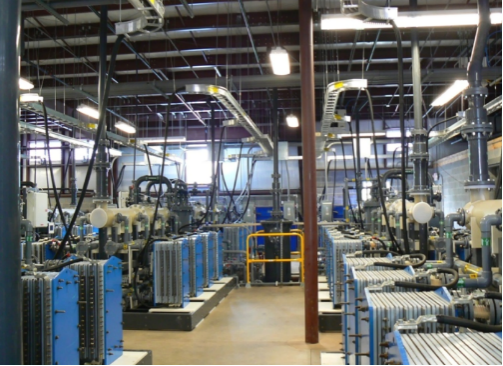

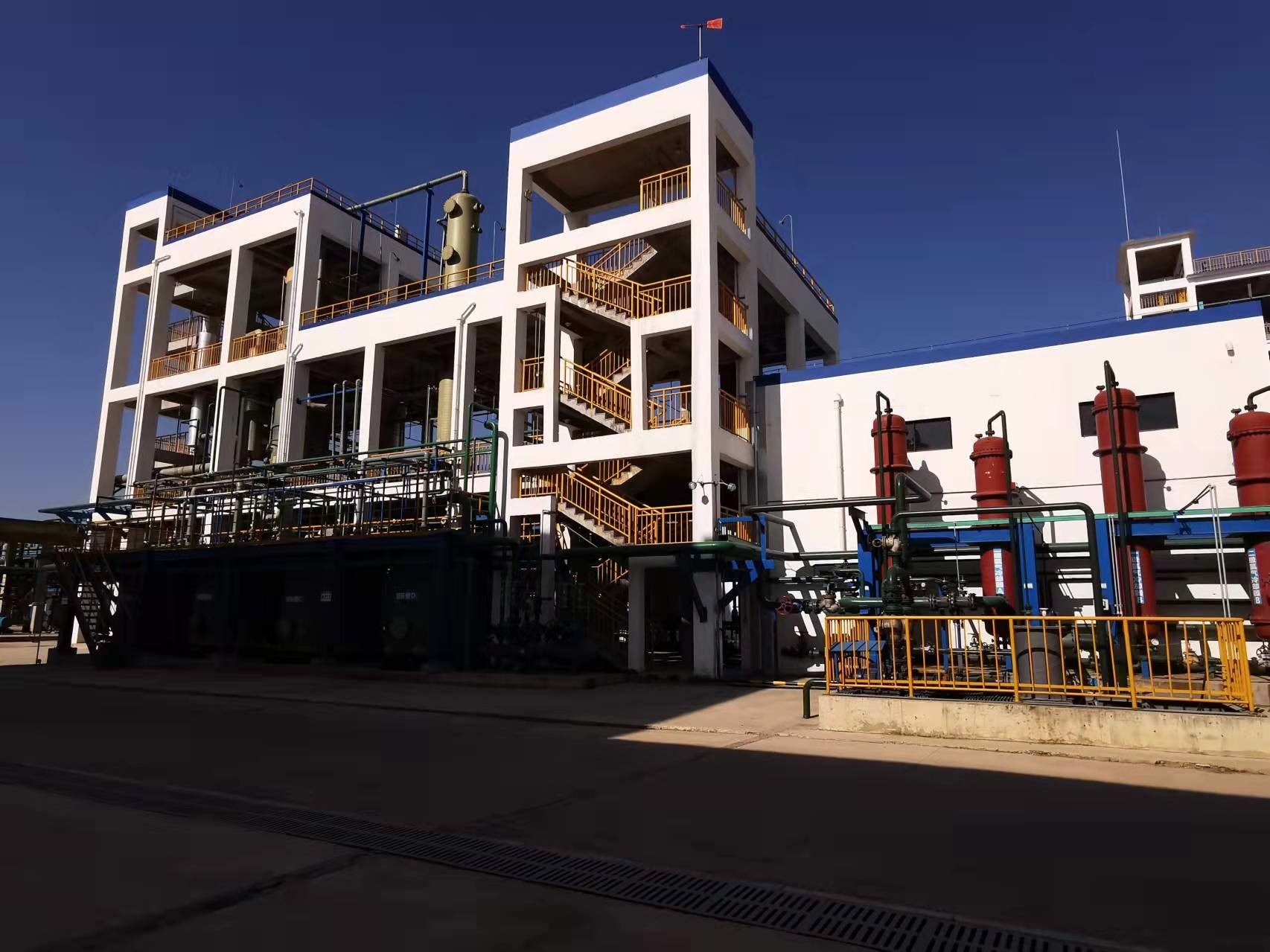

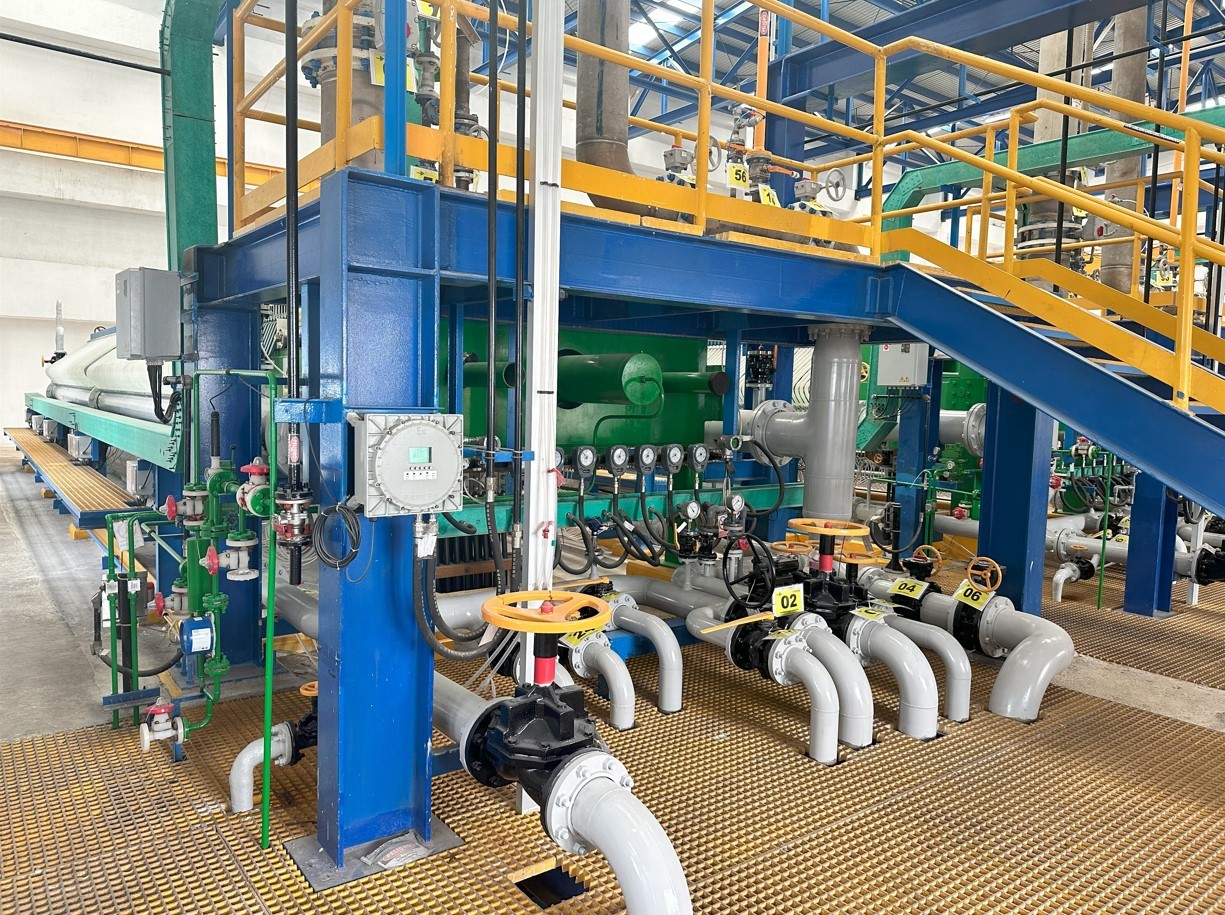

Partial Project Performance Photos:
